Why do I need new brushes for my electric vibrator?

Because you want your vibrator to last a long time and provide trouble-free operation. The carbon brushes in your electric vibrator will wear over time. This is a normal part of the electric vibrator lifecycle. Checking the condition of your brushes and replacing them when they become worn should be part of your regular equipment maintenance program.

What happens if I don’t replace the brushes on my electric vibrator?

You will reduce the vibrator’s effective life and have purchase a replacement or invest in a repair. Allowing the carbon brushes to wear down to the shunts can cause damage to the commutator or contact surface. Once these parts are damaged, the vibrator will no longer work properly and will need to be repaired or replaced. Find your brush kit part number now

How do I know when to replace the brushes?

Just do quick site checks and easy periodic measurements. Refer to the chart below. Find your vibrator model. You will see a measurement indicated. This is the shortest your brush length should be – if your brushes are at this length or shorter, REPLACE THEM NOW. Order by the brush kit number provided.

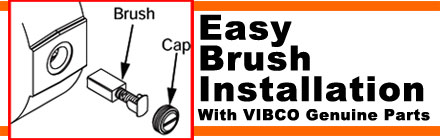

IVIBCO Easy Brush Installation

Is It Time To Replace Your Brushes? Check Now

Replacing Your Brushes is as Easy as 1-2-3-4

  1. Disconnect the power
  2. Remove the brush caps and brushes
  3. Insert the new brushes and caps
  4. Return to work with the satisfaction and knowledge that you have
    just extended the life of your VIBCO Vibrator.

Download a one-page (pdf) guide to replacing your brushes now!
Replacing Brushes on VIBCO Electric Vibrators (pdf)

ELECTRIC VIBRATOR MAINTENANCE TIPS!

  • Save time by having several brush kits on hand to do your
    regular maintenance.

    As always, if you need any further information about the care,
    maintenance,or proper mounting and operation of your
    VIBCO Vibrator, call VIBCO Customer Service at 800-633-0032
  • Take an amperage reading while the vibrator is running.
    Operating amperage should not exceed the value listed on the
    vibrator label. The most common cause of excessive amperage
    draw is improper mounting.multimeter
    Check your mounting welds
    and re-tighten all mounting
    bolts regularly. Consult your
    vibrator's service manual
    for more information.

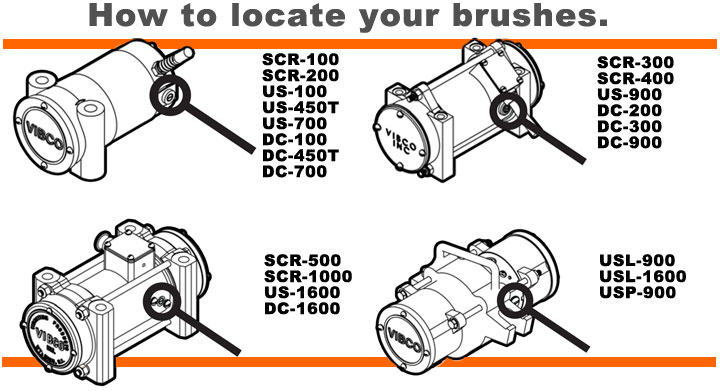

How to locate vibrator brushes

When to Replace Your VIBCO Electric Vibrator Brushes

Download a one-page (pdf) guide to replacing your brushes now!
Replacing Brushes on VIBCO Electric Vibrators (pdf)

If Your Model Number is...

VIBCO High Frequency Vibrators - US
US-100
US-450T
US-700
US-900
US-1600
USL-900
USL-1600
USP-900

VIBCO Internal Vibrators - ACE and JVS
JVS
ACE

VIBCO Adjustable Vibrators - SCR
SCR-100
SCR-200
SCR-300
SCR-400
SCR-500
SCR-1000

VIBCO 12 Volt Vibrators - DC
DC-100
DC-200
DC-300
DC-450T
DC-500
DC-700
DC-900
DC-1600

And Your Brush Length is...


5/16" or less
5/16" or less
5/16" or less
5/16" or less
5/16" or less
5/16" or less
5/16" or less
5/16" or less


5/16" or less
5/16" or less


5/16" or less
5/16" or less
5/16" or less
5/16" or less
7/16" or less
7/16" or less

3/8" or less
3/8" or less
3/8" or less
5/16" or less
3/8" or less
5/16" or less
5/16" or less
5/16" or less

Replace your brushes with...


BK-008
BK-004
BK-004
BK-002
BK-002
BK-002
BK-002
BK-002


BK-011
BK-011

BK-007
BK-004
BK-007
BK-007
BK-005
BK-001

BK-006
BK-006
BK-006
BK-009
BK-006
BK-009
BK-003
BK-003
